Bikes > BMC > Roadmachine > Roadmachine TWO

  • BMC Roadmachine TWO

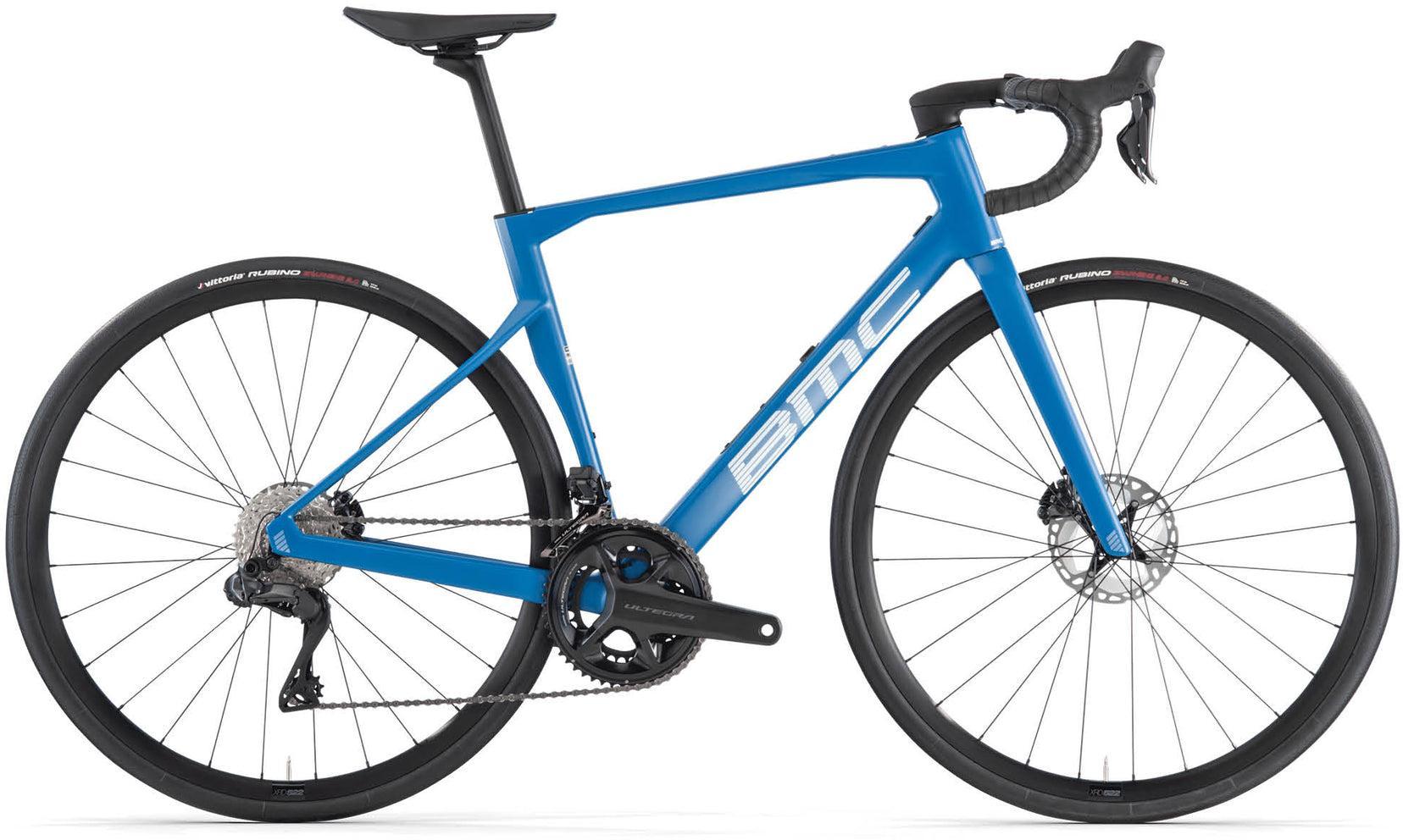

    Roadmachine TWO


    Sale

    MSRP CHF 5499

    Derailleur
    SHIMANO Ultegra Di2 (RD-R8150)
    Brakes
    SHIMANO Ultegra (BR-R8170)
    Frame
    Roadmachine Carbon with Tuned Compliance Concept Endurance | Fender Mounts | Integrated Downtube Storage | Stealth Dropout Design | 12 x 142mm Thru-Axle
    Fork
    Roadmachine Carbon with Tuned Compliance Concept Endurance | Fender Mounts | Stealth Dropout Design | Flat Mount Disc | 12 x 100mm Thru-Axle
    Rims
    XRD-522 | Tubeless Ready | 25 mm
    • Frame Roadmachine Carbon with Tuned Compliance Concept Endurance | Fender Mounts | Integrated Downtube Storage | Stealth Dropout Design | 12 x 142mm Thru-Axle
    • Size 61
    • Fork Roadmachine Carbon with Tuned Compliance Concept Endurance | Fender Mounts | Stealth Dropout Design | Flat Mount Disc | 12 x 100mm Thru-Axle
    • Gears 2 x 12
    • Cassette SHIMANO Ultegra (CS-R8101)
    • Chain SHIMANO CN-M8100
    • Shifters SHIMANO Ultegra Di2 (ST-R8170)
    • Brakes SHIMANO Ultegra (BR-R8170)
    • Handlebar BMC RAB 02 | Ergo Top Shape | Compact Bend
    • Stem BMC ICS2 | Integrated Cockpit System Technology
    • Seatpost Roadmachine Carbon D-Shaped Seatpost | 15mm Offset | D-Fender Compatible
    • Seat Fizik Argo Tempo R5 | 150mm
    • Hubs XRD-522
    • Rims XRD-522 | Tubeless Ready | 25 mm
    • Tires Vittoria Rubino IV G2.0 | Tube only | 30mm
    Geometrie – roadmachine 01 Dura Ace Di2
    Grösse 47 51 54 56 58 61
    Stack mm 514 / 530 539 / 555 560 / 576 574 / 590 593 / 609 617 / 633
    Reach mm 375 / 369 378 / 372 387 / 382 393 / 388 400 / 395 407 / 402
    Sitzrohr st mm 420 464 507 522 539 573
    Oberrohr tt' mm 522 532 546 556 568 583
    Steuerrohr ht mm 95 122 138 154 173 198
    Sitzwinkel sa ° 74.2 74.2 74.2 74.2 74.2 74.2
    Steuerwinkel sa ° 71.2 71.2 72 72 72 72
    Kettenstrebe rc mm 410 410 410 410 410 410
    Front center fc mm 583.7 595 597 608 622 636
    Radstand wb mm 983 995 997 1008 1022 1036
    Tretlagerabsenkung mm 71 71 71 71 71 71
    Gabellänge fl mm 369 369 369 369 369 369
    Gabelvorlauf fr mm 50 50 45 45 45 45
    Nachlauf mm 63 63 63 63 63 63
    Kurbellänge mm 170 170 172.5 172.5 172.5 175
    Vorbaulänge mm 90 90 100 110 120 120
    Vorbauwinkel ° -12.5 -12.5 -12.5 -12.5 -12.5 -12.5
    Lenkerbreite mm 400 420 420 420 440 440
    Lenker Drop mm 125 125 125 125 125 125
    Lenkervorbiegung mm 70 70 70 70 70 70
    Sattelstützenlänge mm 250 250 310 310 310 310
    Sattelstützen-Versatz mm 15 15 15 15 15 15
    Überstandshöhe mm 717 757 786 803 820 849
    Unfortunately this model is sold out!
