Bikes > BMC > trackmachine > Trackmachine 01 Frameset

  • BMC Trackmachine 01 Frameset

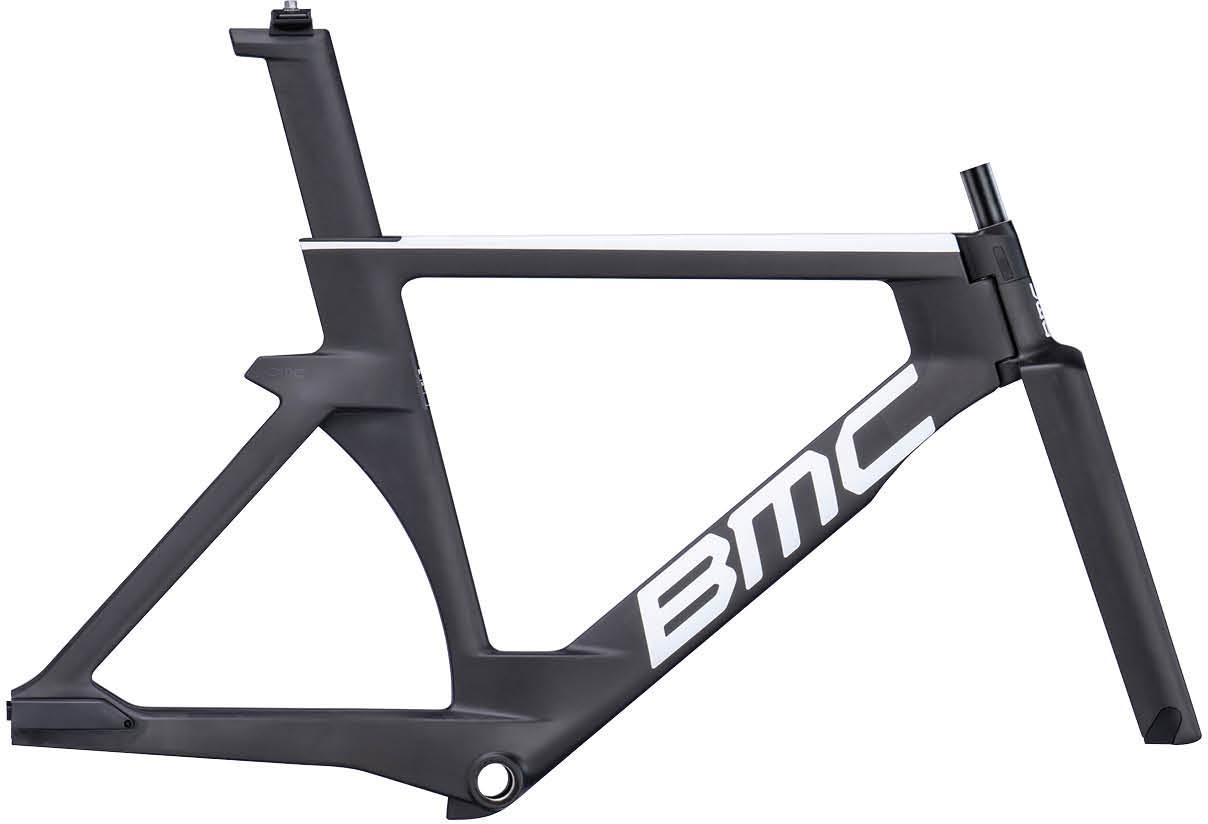

    Trackmachine 01 Frameset



    MSRP CHF 6999

    Derailleur
    Track single speed adjustable dropouts
    Brakes
    Frame
    Trackmachine 01 | 01 Premium Carbon with Aero Design | Steel Sliding Dropout | Compatible to fit BMC Pursuit Base Bar (sold separately)
    Fork
    Trackmachine 01 | 01 Premium Carbon with Vmax Aero Design Hinge-Design
    Rims
    • Frame Trackmachine 01 | 01 Premium Carbon with Aero Design | Steel Sliding Dropout | Compatible to fit BMC Pursuit Base Bar (sold separately)
    • Size L
    • Fork Trackmachine 01 | 01 Premium Carbon with Vmax Aero Design Hinge-Design
    • Stem Stem not included. Compatible with standard 1"1/8 stem.
    • Seatpost Trackmachine 01 | 01 Premium Carbon Aero Seatpost
    Geometrie – trackmachine TR01 Dura Ace Sprint
    Grösse S M L
    Stack mm 471 506 544
    Reach mm 390 408 430
    Sitzrohr st mm 505 542 582
    Oberrohr tt' mm 525 553 585
    Steuerrohr ht mm 94 134 163
    Sitzwinkel sa ° 74 74 74
    Steuerwinkel sa ° 72 72 72
    Kettenstrebe rc mm 390-420 390-420 390-420
    Front center fc mm 586 604 626
    Radstand wb mm 963 981 1003
    Tretlagerabsenkung mm 50 58 58
    Gabellänge fl mm 363 363 363
    Gabelvorlauf fr mm 48 48 48
    Nachlauf mm 59 59 59
    Kurbellänge mm 165 170 170
    Vorbaulänge mm N / A N / A N / A
    Vorbauwinkel ° N / A N / A N / A
    Lenkerbreite mm 370 370 370
    Lenker Drop mm 148 148 148
    Lenkervorbiegung mm 82 82 82
    Sattelstützen-Versatz mm +30 / +10 / -10 / -30 +30 / +10 / -10 / -30 +30 / +10 / -10 / -30
    Überstandshöhe mm 751 779 817
